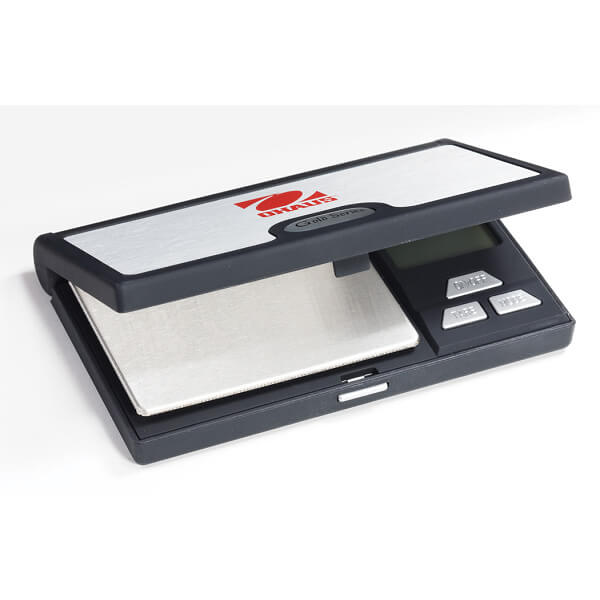

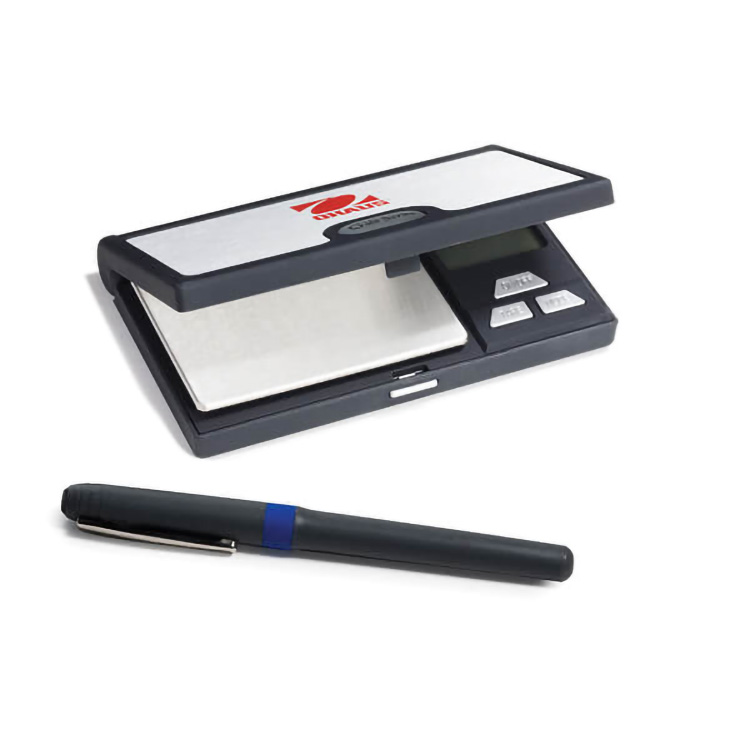

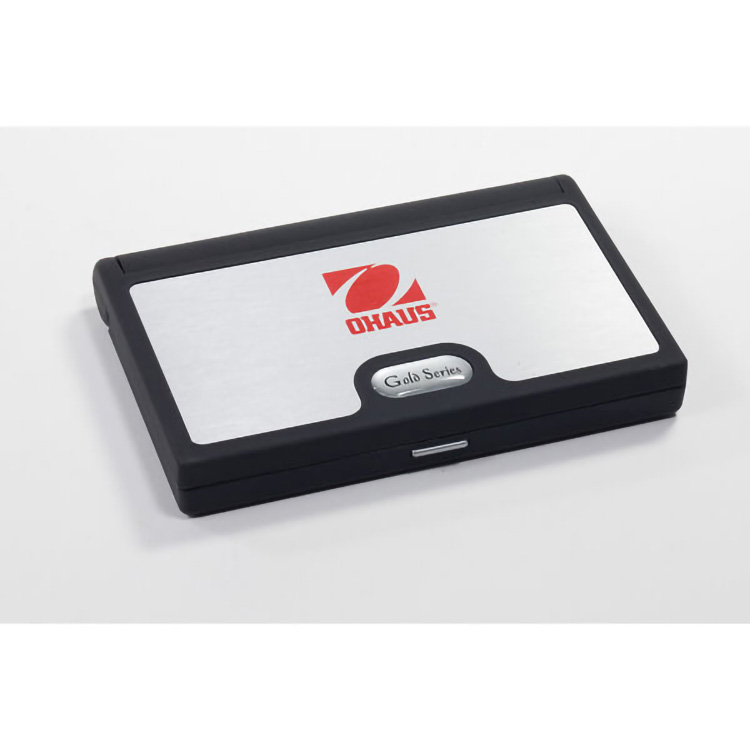

The OHAUS Emerald portable jewelry scale features a stylish yet rugged design for quick reference weighing in jewelry stores and production. Designed to meet the highest quality performance standards, the Emerald scales are extremely simple to operate and garner accurate results.
Applications
Weighing
Display
Backlit liquid crystal display (LCD)
Operation
2 AAA batteries (included)
Communication
N/A
Construction
ABS housing, stainless steel pan, protective cover
Design Features
Mechanical and software overload/underload protection, auto shut-off
YA GOLD SERIES MODELS
| MODELS | YA102 | YA302 | YA501 |
| Maximum Capacity | 100 g | 300 g | 500 g |
| Readability | 0.01 g | 0.05 g | 0.1 g |
| Pan Size | 2.8 in x 2 in (70 mm x 50 mm) | 2.8 in x 2 in (70 mm x 50 mm) | 2.8 in x 2 in (70 mm x 50 mm) |
| Communication | Not Applicable | Not Applicable | Not Applicable |
| Auxiliary Display Model | Not Applicable | Not Applicable | Not Applicable |
| Dimensions | 2.9 in x 0.8 in x 4.3 in (75 mm x 20 mm x 110 mm) (LxHxW) | 2.9 in x 0.8 in x 4.3 in (75 mm x 20 mm x 110 mm) (LxHxW) | 2.9 in x 0.8 in x 4.3 in (75 mm x 20 mm x 110 mm) (LxHxW) |
| Display | LCD with backlight | LCD with backlight | LCD with backlight |
| Internal Calibration | Not Applicable | Not Applicable | Not Applicable |
| Inuse cover | No | No | No |
| Legal for Trade | Not applicable | Not applicable | Not applicable |
| Linearity | ± 0.03 g | ± 0.15 g | ± 0.3 g |
| Net Weight | 0.15 kg | 0.15 kg | 0.15 kg |
| Pan Construction | Stainless Steel | Stainless Steel | Stainless Steel |
| Power | 2 AAA (LR03) Batteries (Included) | 2 AAA (LR03) Batteries (Included) | 2 AAA (LR03) Batteries (Included) |
| Repeatability, typical | 0.01 g | 0.05 g | 0.1 g |
| Tare Range | To capacity by subtraction | To capacity by subtraction | To capacity by subtraction |
| Transportation Case | No | No | No |
| Units of Measurement | Grain; Gram; Carat; Ounce | Grain; Gram; Carat; Ounce | Grain; Gram; Carat; Ounce |
| Working Environment | 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) | 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) | 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) |
