The Kanomax TABmaster Mini Airflow Capture Hood is the perfect HVAC testing tool for residential or small space applications. This direct reading device gives you highly accurate and repeatable measurements in the field. With a compact and lightweight design, operators can quickly check supply and return airflow measurements in buildings.

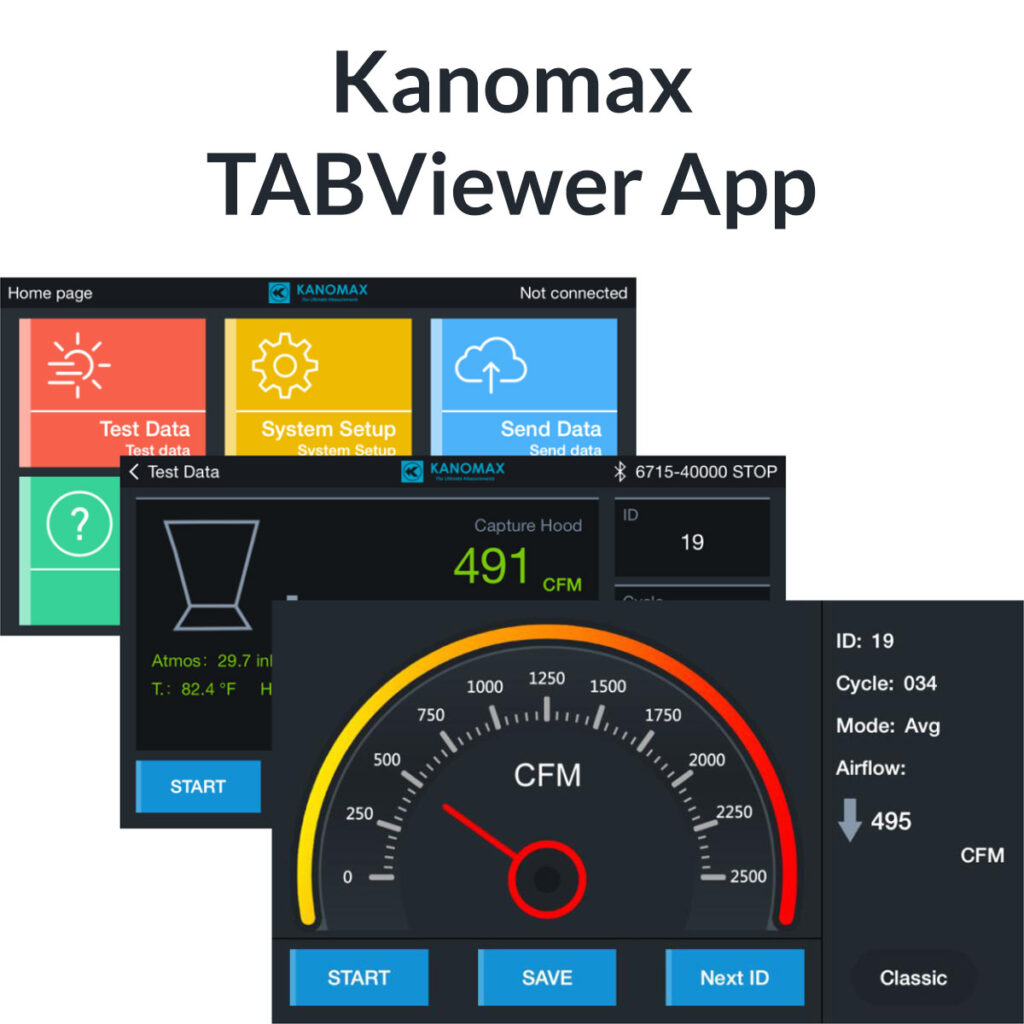

With its transparent hood design users can easily line up with the register they measure. Capable of recording up to 6000 data points, the TABmaster Mini also comes equipped with Bluetooth? wireless capability to wirelessly start/stop measurements, as well as communicate with the Kanomax TABViewer App.
Features & Benefits
Airflow ranges: 8 to 600 m3/h
Simultaneously measures and displays air flow and temperature
Store up to 6000 measurements
Lightweight and one-hand operation design
Bluetooth? wireless capability
Transparent flow hood for easy register alignment
Wireless control and communication via Kanomax Smart App
Accurately measure small registers/vents in residential buildings
Has applications for both residential and commercial buildings
Main Unit Specifications
| Airflow | Range | 8 to 600 m3/h (5 to 353 CFM) |
| Accuracy | +/- 3% + 1 digit m3/h (@ 8 to 350 m3/h ranges) +/- 5% + 1 digit m3/h (@ 350 to 600 m3/h ranges) | |
| Resolution | 1 m3/h | |
| Temperature | Range | 32 to 122°F (0 to 50°C) |
| Accuracy | +/- 0.5°C | |
| Resolution | 0.1°C | |
| General Specifications | ||
| Operating Temperature | 0 to 50°C (with no condensation) | |
| Storage Temperature | -10 to 50°C (with no condensation) | |
| Standard Hood Dimensions | 13.97 x 13.97 inches (355 mm x 355) mm | |
| Datalogging | Up to 6,000 Measurements | |
| Power Supply | 4 x AA batteries or optional AC Adapter | |
| Weight & Dimensions | Main body: 3.3 lbs (1.5 kg), Micromanometer: 2.4 x 4.7 x 1.2 inches (60 x 120 x 34 mm) | |
| Warranty | 1 year | |
| What’s included | Instrument (meter, standard hood, rod, meter fixture, meter cable) Carrying case USB cable 4 x AA batteries Software (provided with CD-ROM) User manual Calibration certificate with a test sheet | |
