Your location：Home > PRODUCTS > testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity

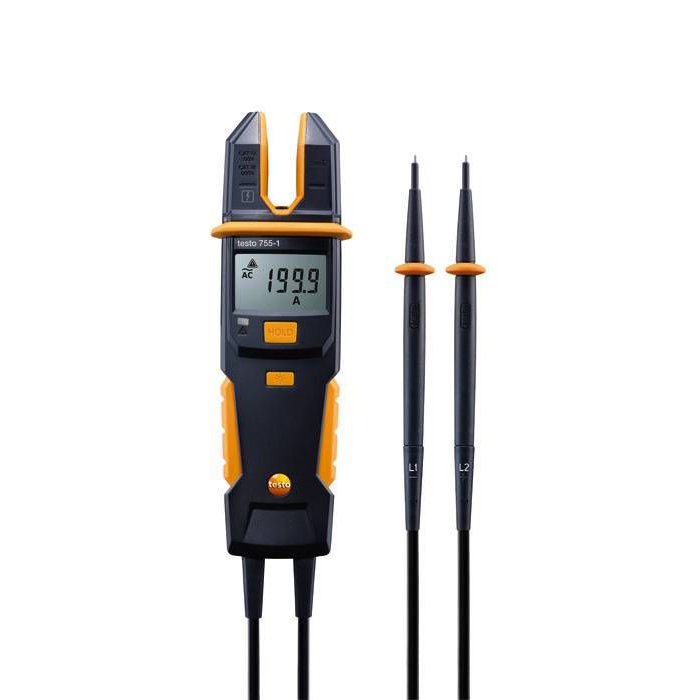

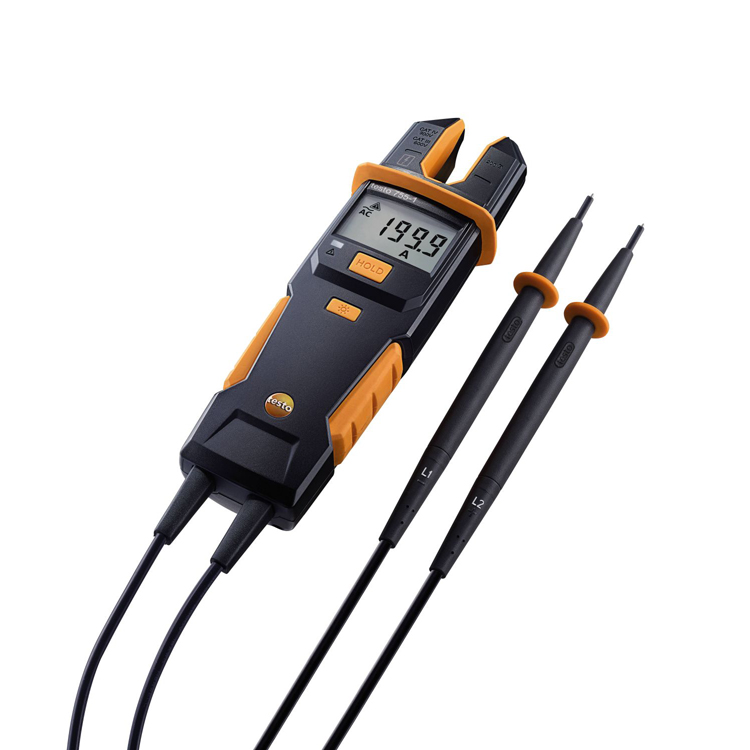

Product Name：testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity

testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity
  • testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity
  • testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity
  • testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity
  • testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity
  • testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity
  • testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity
  • Description
  • Details
  • Optional Accessories

  • Product Description

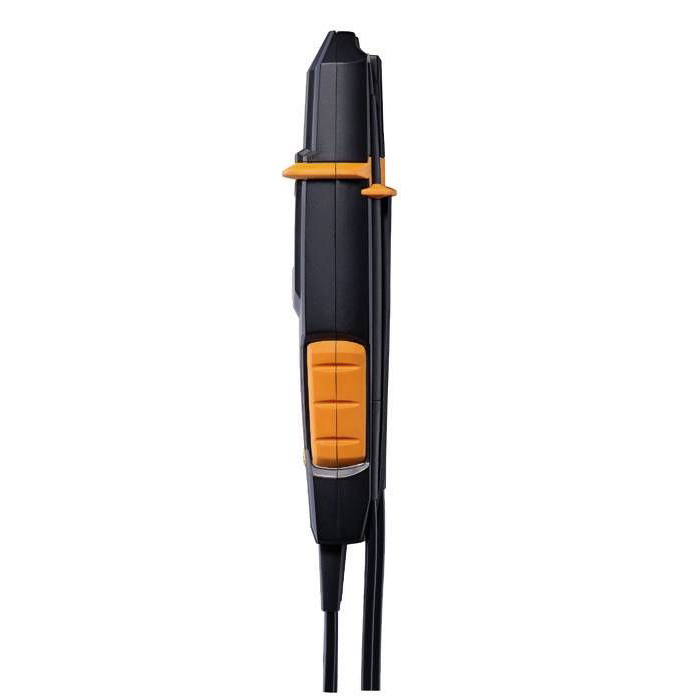

    The instruments include important functions such as current, voltage, resistance & continuity. The integrated flashlight enables users to work in poorly lit areas. The overall design is for convenient testing including interchangable measuring tips which can be easily updated and maintained. A convenient lead holder is integrated into the housing for safe and easy storage.

    Testo’s history of efficiency, innovation, and quality now extends into the entire electrical lineup. Once again, Testo brings high value, feature-packed products to the HVAC contractor market.



    Delivery Scope

    testo 755-1 current / voltage meter 200 A AC, 600 V AC/DC, with built-in flashlight includes batteries and measuring tips


  • DC voltage

    Resolution6 to 600 V / 0.1 V
    Accuracy± (1.5 % of mv + 3 Digit)

    AC voltage

    Resolution6 to 600 V / 0.1 V
    Accuracy± (1.5 % of mv + 3 Digit)

    AC current

    Resolution200 A / 0.1 A
    Accuracy± (3 % of mv + 3 Digit)

    Resistance

    Resolution100 kOhm / 1 Ohm
    Accuracy± (1.0 % of mv + 5 Digit)

    General technical data

    Dimensions8 x 2 x 2 in. / 199 x 62 x 40 mm
    Operating temperature14° to 122 °F / -10 to +50 °C
    Protection classIP64
    Warranty2 years
    Storage temperature5° to 140 °F / -15 to +60 °C
    Weight11 oz. / 310 g
    Overvoltage CategoryCAT IV 600V; CAT III 1000V
    AuthorizationsTüV; CSA; CE

    Instrument Measurement Functions

    Continuity testingyes
    Display ligthingyes
    Holdyes
    Measuring point illuminationyes
    Display (counts)4,000
