合金鋼材料，鍍鎳，單剪梁結構，膠密，壓向承載（H8H）。
不銹鋼材料，單剪梁結構，密封焊接，壓向承載.(BM8H)
H8H防護等級IP67
BM8H防護等級IP68
適用于地磅、汽檢線、皮帶秤、料斗秤及各類電子稱重設備。
| xxkg | C3 | H8H-C3-xxkg-xB |
| xxt | C3 | H8H-C3-xxt-xB |
| 500lb | C3 | H8H-C3-500-xYB |
| xxklb | C3 | H8H-C3-xxk-xYB |
| xxkg | C3/A5M/B10S/B10M | BM8H-xx-xxkg-xB |
| xxt | C3/A5M/B10S/B10M | BM8H-xx-xxt-xB |
| xxlb | A5M/B10S/B10M | BM8H-xx-xx-xB |
| xxklb | A5M/B10S/B10M | BM8H-xx-xxk-xB |
| xxkg | C3/A5M/B10S/B10M | BM8H-xx-xxkg-xB-A1 |
| xxt | C3/A5M/B10S/B10M | BM8H-xx-xxt-xB-A1 |
| xxlb | A5M/B10S/B10M | BM8H-xx-xx-xB-A1 |
| xxklb | A5M/B10S/B10M | BM8H-xx-xxk-xB-A1 |
| 500kg-5t通過OIML C3級認證（BM8H） 1klb-10klb(500kg-5t)通過NTEP A5M/B10S/B10M級認證。 “A1”表示電流輸出，阻抗1000Ω | ||
技術指標
| 額定載荷 | t | 0.25/0.5/1/2/2.5/3/5 | ||||
| klb | 0.5/1/2.5/4/5/10 | |||||
| 精度 | C2 | C3 | C4 | A5M | B10M | |
| 認證 | OIML R60 C3 | |||||
| 最大檢定分度數 | n max | 2000 | 3000 | 4000 | III 5000多只 | III 10000多只 |
| 最小檢定分度值 | v min | Emax/5000 | Emax/10000 | Emax/14000 | Emax/15000 | Emax/10000 |
| 綜合誤差 | (%FS) | ≤±0.030 | ≤±0.020 | ≤±0.018 | ≤±0.026 | ≤±0.050 |
| 蠕變 | (%FS/30min) | ≤±0.024 | ≤±0.016 | ≤±0.012 | ≤±0.017 | ≤±0.040 |
| 溫度對輸出靈敏度的影響 | (%FS/10℃) | ≤±0.017 | ≤±0.011 | ≤±0.009 | ≤±0.013 | ≤±0.040 |
| 溫度對零點輸出的影響 | (%FS/10℃) | ≤±0.023 | ≤±0.015 | ≤±0.010 | ≤±0.014 | ≤±0.020 |
| 輸出靈敏度 | (mv/v) | 2.0±0.002/ 2.0±0.004(H8H) | ||||
| 絕緣阻抗 | (MΩ) | ≥5000(50VDC) | ||||
| 輸入阻抗 | (Ω) | 1000±10 | 350±3.5 | |||
| 輸出阻抗 | (Ω) | 1000±10 | 351±2.0 | |||
| 零點輸出 | (%FS) | ≤±1.0 | ||||
| 溫度補償范圍 | (℃) | -10～+40 | ||||
| 允許使用溫度范圍 | (℃) | -35～+70 | ||||
| 推薦激勵電壓 | (V) | 5～12(DC) | ||||
| 最大激勵電壓 | (V) | 18(DC) | ||||
| 安全過載范圍 | (%FS) | 150 | ||||
| 極限過載范圍 | (%FS) | 300 | ||||
| ATEX等級（可選） | II 1G Ex ia II 1C T4 | II 1D Ex iaD20 T73℃ | II 3G Ex nL II C T4 | |||
| 注：H8H精度為C3,無OIML/NTEP/PTB/ATEX/FM/ExNEPSI認證，無2.5/3t量程，輸入阻抗為350±3.5，輸出阻抗為351±2.0 | ||||||

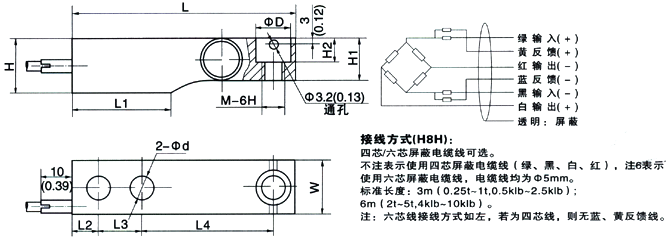

外形尺寸mm(inch)
| 量程 | L | L1 | L2 | L3 | L4 |
250㎏ 500lb | 130.0 (5.12) | 57 (2.24) | 15.5 (0.62) | 25.4 (1.0) | 76.2 (3.0) |
| 500㎏ 1Klb | 130.0 (5.12) | 57.1 (2.25) | 15.5 (0.62) | 25.4 (1.0) | 76.2 (3.0) |
1.0t 2Klb,2.5K | 130.0 (5.12) | 57.1 (2.25) | 15.5 (0.62) | 25.4 (1.0) | 76.2 (3.0) |
1.5t,2.0t 4Klb,5Klb | 130.0 (5.12) | 57.1 (2.25) | 15.5 (0.62) | 25.4 (1.0) | 76.2 (3.0) |
2.5t,3t | 172 (6.71) | 76.2 (3.0) | 19.1 (0.75) | 38.1 (1.5) | 95.3 (3.75) |
5.0t 10Klb | 172 (6.71) | 76.2 (3.0) | 19.1 (0.75) | 38.1 (1.5) | 95.3 (3.75) |
| 量程 | H | H1 | H2 | W | D | d | M |
250㎏ 500lb | 31.8 (1.24) | 25.5 (1.01) 25.32(1.0) | 14.2 (0.55) | 31.8 (1.23) | 20.5 (0.81) | 13 (0.51) | M12 1/2-20UNF |
500㎏ 1Klb | 31.8 (1.24) | 26 (1.02) | 14.2 (0.55) | 31.8 (1.23) | 20.5 (0.81) | 13 (0.51) | M12 1/2-20UNF |
1.0t 2Klb,2.5K | 31.8 (1.24) | 27.95 (1.1) | 14.2 (0.55) | 31.8 (1.23) | 20.5 (0.81) | 13 (0.51) | M12 1/2-20UNF |
1.5t,2.0t 4Klb,5Klb | 35.9 (1.41) | 31.95 (1.26) | 14.2 (0.55) | 31.8 (1.23) | 20.5 (0.81) | 13 (0.51) | M12 1/2-20UNF |
2.5t,3t | 44 (1.72) | 36 (1.42) | 20 (0.78) | 38 (1.48) | 30.2 (1.19) | 20.5 (0.8) | M20 |
5.0t 10Klb | 44 (1.72) | 40 (1.57) | 20 (0.78) | 38 (1.48) | 30.2 (1.19) | 20.5 (0.8) | M20 3/4-20UNF |
